How to calculate the heat output of a heating alloy strip?

Hey there! As a supplier of heating alloy strips, I often get asked about how to calculate the heat output of these strips. It's a crucial question, especially for those who are looking to use our products in various heating applications. In this blog post, I'm gonna walk you through the process step by step.

First off, let's understand the basics. The heat output of a heating alloy strip is mainly determined by the electrical power it consumes. According to the laws of physics, the power (P) in an electrical circuit can be calculated using the formula (P = VI), where (V) is the voltage applied across the strip and (I) is the current flowing through it. But in most practical situations, we can also use the formula (P=\frac{V^{2}}{R}) or (P = I^{2}R), where (R) is the resistance of the heating alloy strip.

Measuring Resistance

To calculate the power and thus the heat output, we first need to know the resistance of the heating alloy strip. The resistance of a conductor is given by the formula (R=\rho\frac{L}{A}), where (\rho) is the resistivity of the material, (L) is the length of the strip, and (A) is the cross - sectional area of the strip.

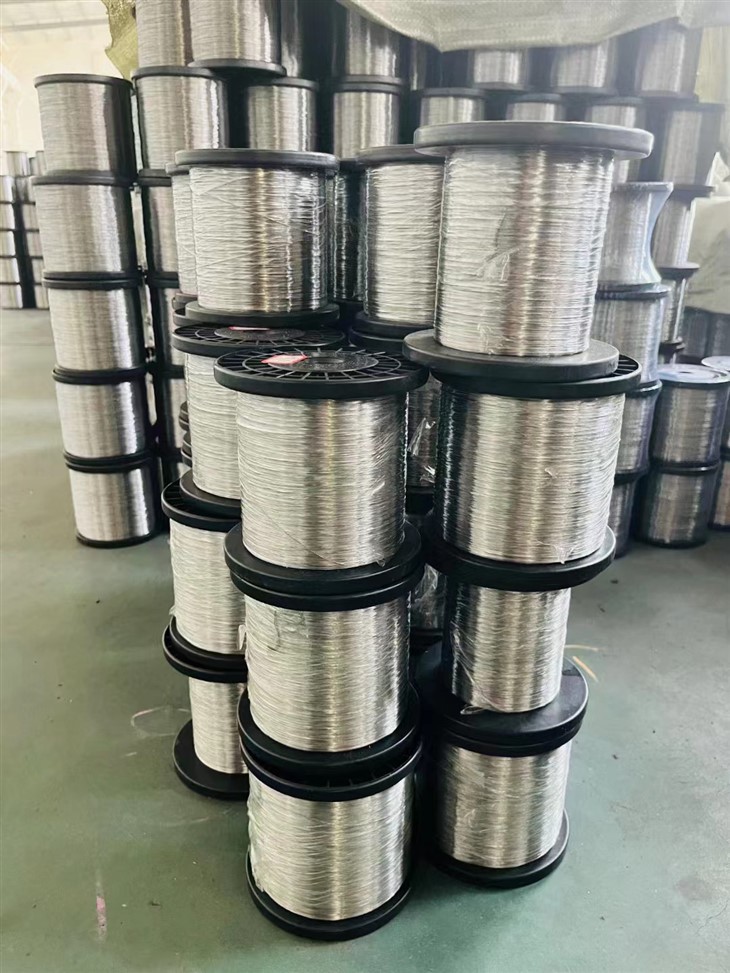

The resistivity (\rho) is a characteristic property of the material. Different types of heating alloy strips have different resistivities. For example, our 1.4767 Heating Resistance Strip has a specific resistivity value that is determined by its chemical composition and manufacturing process. Similarly, 0Cr21Al4 and 0Cr21Al6Nb Resistance Wire also have their own unique resistivity values.

To measure the length (L) of the strip, you can simply use a measuring tape or a ruler. Make sure to measure from one end of the strip to the other in a straight line. For the cross - sectional area (A), if the strip has a rectangular cross - section, you can measure the width (w) and the thickness (t) of the strip and then calculate (A = w\times t). If it has a circular cross - section, you can measure the diameter (d) and calculate (A=\frac{\pi d^{2}}{4}).

Calculating Power

Once you have determined the resistance (R) of the heating alloy strip, you can calculate the power. If you know the voltage (V) applied across the strip, you can use the formula (P=\frac{V^{2}}{R}). For example, if you have a heating alloy strip with a resistance of (10\Omega) and you apply a voltage of (220V) across it, then the power (P=\frac{220^{2}}{10}=4840W).

On the other hand, if you know the current (I) flowing through the strip, you can use the formula (P = I^{2}R). Suppose the current flowing through the same (10\Omega) strip is (2A), then the power (P=2^{2}\times10 = 40W).

Factors Affecting Heat Output

It's important to note that there are several factors that can affect the actual heat output of the heating alloy strip. One of the main factors is the temperature. As the temperature of the strip increases, its resistivity (\rho) may change. This is known as the temperature coefficient of resistance. In general, for most heating alloy materials, the resistivity increases with an increase in temperature. So, as the strip heats up, its resistance will increase, and if the voltage is kept constant, the power and heat output will decrease slightly.

Another factor is the environment in which the strip is operating. If the strip is in a well - ventilated area, it will dissipate heat more quickly, and the temperature of the strip may not rise as much as it would in a poorly ventilated area. This can also affect the resistance and the heat output.

Practical Applications

Now that you know how to calculate the heat output of a heating alloy strip, let's talk about some practical applications. Heating alloy strips are widely used in various industries, such as the automotive industry for engine pre - heating, in the food industry for food warming, and in the home appliance industry for electric heaters and ovens.

In each of these applications, it's crucial to accurately calculate the heat output to ensure that the device functions properly. For example, in an electric oven, if the heat output of the heating alloy strip is too low, the food may not cook properly. On the other hand, if the heat output is too high, it may cause overheating and damage to the oven.

Contact Us for Your Heating Alloy Strip Needs

If you're in the market for high - quality heating alloy strips and need help with calculating the heat output for your specific application, we're here to assist you. Our team of experts has years of experience in the industry and can provide you with the best solutions. Whether you need 1.4767 Heating Resistance Strip, 0Cr21Al4, or 0Cr21Al6Nb Resistance Wire, we have a wide range of products to meet your requirements.

Don't hesitate to contact us for a quote or to discuss your project in more detail. We look forward to working with you and helping you achieve the perfect heat output for your heating applications.

References

• Halliday, D., Resnick, R., & Walker, J. (2014). Fundamentals of Physics. Wiley.
• Serway, R. A., & Jewett, J. W. (2018). Physics for Scientists and Engineers with Modern Physics. Cengage Learning.
